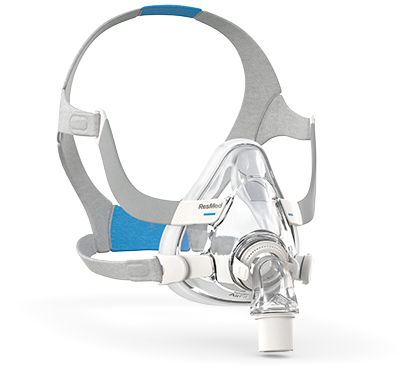

      Full face mask

      AirFit F20

      This product may not be available in all countries.

      • New InfinitySeal silicone cushion designed to accommodate your movements, and tolerate misfitting
      • Easy to use magnetic clips for quick fitting
      • Flexible fabric-lined frame delivers breadth of fit while adding comfort
      • Plush headgear assists in giving a more comfortable night’s therapy
      • Women’s for Her variant available for more tailored therapy
      The mask contains magnets that may interfere with certain implants or medical devices. Please refer to the Support documents for complete information, including magnet contraindications and warnings.

      An easy fit for you

      AirFit F20 has been specially designed to comfortably fit a wide range of faces. In ResMed 2016 international studies, AirFit F20 fit 96.5% of all patients tested. 1, 2, 3, 4 Regardless of your face shape or size, the silicone cushion has been crafted to adapt to your profile thanks to its uniquely contoured design. It aims to provide a secure fit and comfortable seal tailored to your therapy needs.

      Patient tested and preferred

      Extensively tested and designed to give you the best therapy experience, AirFit F20 is a popular choice among patients. Recent ResMed studies have shown that, when comparing against the current market-leading full face mask, 86% of all patients tested prefer the seal of AirFit F20.

      A majority of patients also say they prefer AirFit F20 over the current market leader in terms of stability and ease of use.1 These features combine to deliver a comprehensively superior mask experience.

      Our AirFit 20 series for Her range

      Designed for women, this range was specifically crafted to give every woman a more personalised mask that better meets her unique facial features and adapts to the way she sleeps.

      Explore

      Support

      Sizing for your AirFit F20

      You can print your ResMed sizing guide here. Remember to print to scale, as you’ll have to cut out your guide from the document you print.

      Once you have your sizing guide:

      use a mirror and hold the sizing guide to your face. The top of the guide should correspond with the top of your nasal bridge.

      the lower part of the guide indicates which mask size is best for your face. The size that aligns with the crease below your lower lip will be your recommended fit.

      If you’re between sizes, we recommend selecting the larger option for greater comfort.

      As an alternative to using a sizing guide, you can also use a straight ruler to measure the distance from the bridge of your nose (between your eyes) to the dip between your lower lip and your chin. Different measurements correspond to the following sizes:

      Between 74-86 mm: Small

      Between 86-98 mm: Medium

      Between 98-110 mm: Large

      Before purchasing or trialling the AirFit F20 mask, your CPAP provider will follow the same process using the sizing guide to help select the mask size that best fits you.

      Fitting your AirFit F20

      Step 1 - Unclip the EasyClickTM Magnets.

      Step 2 - With the mask held against your face, pull the headgear over your head. Ensure the top of the mask cushion is sitting comfortably at the top of your nasal bridge. The bottom of your headgear should settle comfortably at the top of your neck - with the top of the headgear sitting on your crown.

      Step 3 - Bring each of the magnets up to meet their corresponding clips on the frame.

      Step 4 - Adjust the tabs on the upper headgear straps.

      Step 5 - Adjust the tabs on the lower headgear straps.

      Step 6 - Connect your device tubing to your mask elbow.

      Step 7 - Connect the elbow to your mask.

      Step 8 - To ensure your fit will work with your therapy: switch on your device and position yourself as if you are to begin therapy (e.g. lying down in bed).

      Step 9 - Adjust your upper straps.

      Step 10 - Adjust your lower straps.

      Step 11 - Do not overtighten as this may cause discomfort.

      Step 12 - Practice reseating your cushion – pull your mask away from your face, allow your cushion to reinflate, and then resettle the inflated cushion so the cushion membrane is sitting at the top of your nasal bridge.

      These instructions are for general information purpose only. For full details consult the user guide.

      Helpful resources

      For additional therapy assistance.

      Warranty & Servicing

      If you have any questions regarding warranty information on our masks, please contact your local customer service team.

      Getting started with therapy

      Get on the right track with your sleep therapy.

      Your therapy basics

      The how, what, where and why…

      The benefits of therapy

      What does therapy do for you…

      Think positive

      Some helpful tips…

      Fitting your AirFit F20

      Step 1 - Unclip the EasyClickTM Magnets.

      Step 2 - With the mask held against your face, pull the headgear over your head. Ensure the top of the mask cushion is sitting comfortably at the top of your nasal bridge. The bottom of your headgear should settle comfortably at the top of your neck - with the top of the headgear sitting on your crown.

      Step 3 - Bring each of the magnets up to meet their corresponding clips on the frame.

      Step 4 - Adjust the tabs on the upper headgear straps.

      Step 5 - Adjust the tabs on the lower headgear straps.

      Step 6 - Connect your device tubing to your mask elbow.

      Step 7 - Connect the elbow to your mask.

      Step 8 - To ensure your fit will work with your therapy: switch on your device and position yourself as if you are to begin therapy (e.g. lying down in bed).

      Step 9 - Adjust your upper straps.

      Step 10 - Adjust your lower straps.

      Step 11 - Do not overtighten as this may cause discomfort.

      Step 12 - Practice reseating your cushion – pull your mask away from your face, allow your cushion to reinflate, and then resettle the inflated cushion so the cushion membrane is sitting at the top of your nasal bridge.

      Disassembling your AirFit F20

      Step 1 - Remove elbow from frame by pressing the side buttons and pulling the elbow away.

      Step 2 - Unclip the EasyClick Magnets.

      Step 3 - Undo upper headgear tabs.

      Step 4 - Pull strapping away from frame.

      Step 5 - Hold the side of the frame between the upper and lower arms. Gently pull the cushion away from the frame.

      Cleaning your AirFit F20 (Daily)

      Step 1 - Disassemble mask.

      Step 2 - Rinse frame, elbow and cushion under running water. Clean each component with a soft brush.

      Step 3 - Soak components in warm water with mild liquid detergent (as dishwashing liquid) for up to ten minutes. Beware: do not use strong chemicals.

      Step 4 - Shake components in water.

      Step 5 - Brush moving parts of elbow and around vent holes.

      Step 6 - Brush areas of frame where arms connect, and inside and outside the frame where the elbow connects.

      Step 7 - Rinse components under running water.

      Step 8 - Leave components to air dry out of direct sunlight – making sure to squeeze the arms of the frame to ensure excess water is removed.

      Assembling your AirFitF20

      Step 1 - Attach cushion to frame by aligning the circular openings and pushing together until retained.

      Step 2 - With the ResMed logo on the headgear facing outside and upright, attach the EasyClick Magnets.

      Step 3 - Thread the upper headgear straps into the frame slots from the inside. Fold them over to secure.

      Step 4 - Connect elbow to mask frame.

      Haircare Tips for AirFit F20

      These instructions are for general information purpose only. For full details consult the user guide.

      Helpful resources

      For additional therapy assistance.

      Getting started – think positive

      Starting therapy can seem daunting. Let us help you get started with the right frame of mind.

      Managing leak with your AirFit F20

      Leak often occurs when your mask’s seal is compromised by movement, incorrect fitting or improper sizing.

      To find a source of leak, run your finger along the edge of your mask’s seal. Once located, adjust your headgear. Resolve any leak in the upper part of your mask by adjusting your upper straps.

      Resolve lower mask leak with your lower straps.

      Do not overtighten as this may cause discomfort.

      If leak persists, with your device still switched on, reseal by briefly pulling your mask away from your face, letting your cushion reinflate, and resettling your mask cushion so the cushion membrane is sitting at the top of your nasal bridge.

      If leak continues, you may need a different size mask. Try our sizing guide or speak to your CPAP provider about using a different sized mask.

      Maintaining your AirFit F20

      Your mask should be checked regularly for signs of damage and deterioration.

      When cleaning your mask, you should also check each component for damage. Your cushion, frame, tubing, elbow and headgear should all be regularly checked for cracks and tears.

      If any component of your mask is cracked or torn, it may be damaged and in need of replacement.

      We also recommend that you regularly replenish your mask cushion.

      Cleaning your AirFit F20 (Daily)

      Step 1 - Disassemble mask.

      Step 2 - Rinse frame, elbow and cushion under running water. Clean each component with a soft brush.

      Step 3 - Soak components in warm water with mild liquid detergent (as dishwashing liquid) for up to ten minutes. Beware: do not use strong chemicals.

      Step 4 - Shake components in water.

      Step 5 - Brush moving parts of elbow and around vent holes.

      Step 6 - Brush areas of frame where arms connect, and inside and outside the frame where the elbow connects.

      Step 7 - Rinse components under running water.

      Step 8 - Leave components to air dry out of direct sunlight – making sure to squeeze the arms of the frame to ensure excess water is removed.

      Cleaning your AirFit F20 (Weekly)

      Step 1 - Disassemble mask. EasyClick Magnets can remain attached to headgear during cleaning.

      Step 2 - Handwash headgear in warm water with mild liquid detergent.

      Step 3 - Rinse headgear under running water. Inspect to ensure headgear is clean and detergent free. Wash and rinse again, if necessary.

      Step 4 - Squeeze headgear to remove excess water.

      Step 5 - Leave headgear to air dry out of direct sunlight.


      These instructions are for general information purpose only. For full details consult the user guide.

      Helpful resources

      For additional therapy assistance.

      Traveling with your equipment

      Our products are designed to make travelling easy. Here are some useful tips.

      Warranty & Servicing

      If you have any questions regarding warranty information on our masks, please contact your local customer service team.

      Accessories

      Accessories

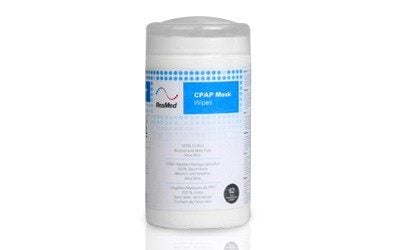

      CPAP Mask Wipes

      ResMed CPAP Mask Wipes are a fast and easy cleaning solution for any CPAP mask.

      More information…

      An ecosystem of solutions for individual answers

      From screening to therapy devices and masks, our solution can help you get a better night’s rest. Crafted to offer both confidence and flexibility, our products allow for a high-quality therapy experience catered to your needs.

      Our device, mask and accessory ranges enable you to easily customise your therapy experience to your preferences.

      Reference

      01

      ResMed internal study of 22 existing ResMed patients, conducted between 26/04/2016 – 27/05/2016 comparing the current market leading mask with AirFit F20. Preliminary patient study – data on file; ID A3810791.

      02

      ResMed AirFit F20 internal fitting study of 27 ResMed and non-ResMed patients, conducted between 30/03/2016 – 04/04/2016. Preliminary patient study – data on file; ID A3751086.

      03

      ResMed AirFit F20 internal international fitting study of 34 ResMed and non-ResMed patients, conducted between 11/04/2016 – 15/04/2016. Preliminary patient study – data on file; ID A3774922.

      04

      ResMed AirFit F20 internal international fitting study of 90 ResMed and non-ResMed patients, conducted between 06/06/2016 – 22/06/2016. Preliminary patient study – data on file; ID A3830701.
